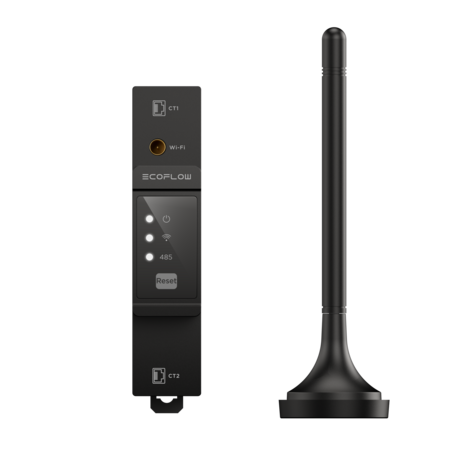

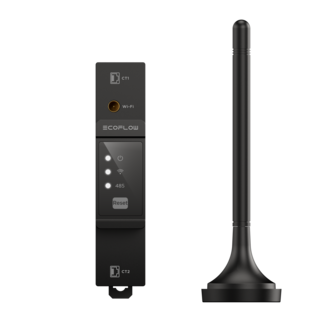

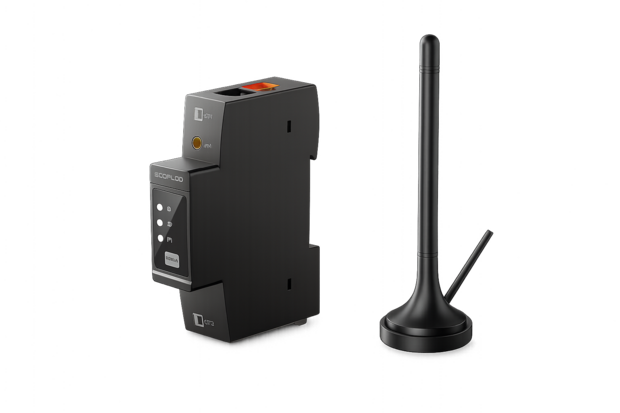

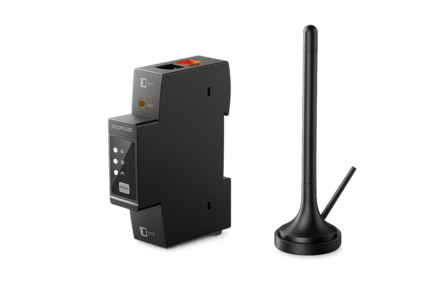

EcoFlow Smart Meter 120A CT – Smart Energy Management for Your EcoFlow Home Battery
Optimize the performance of your EcoFlow STREAM home battery with the EcoFlow Smart Meter 120A CT. This smart energy meter measures electricity consumption and solar energy feed-in in real time, allowing your EcoFlow home battery to charge and discharge fully automatically. This helps you use more of your self-generated solar energy and maximize your energy savings.
The EcoFlow Smart Meter uses accurate CT current clamps that can be easily installed around the phase wires in your electrical cabinet. This eliminates the need to disconnect or modify the existing wiring.
Why Choose the EcoFlow Smart Meter 120A?
-
✔ Real-time insight into electricity consumption and grid feed-in
-
✔ Automatic control of the EcoFlow STREAM home battery
-
✔ Suitable for both single-phase and three-phase installations
-
✔ Includes 3 × 120A CT current clamps
-
✔ Accurate energy measurement
-
✔ Wi-Fi and Bluetooth connectivity
-
✔ Easy setup through the EcoFlow App
-
✔ DIN rail mounting in the electrical cabinet
Smart Energy Management
The EcoFlow Smart Meter continuously measures how much electricity your home consumes and how much energy your solar panels feed back into the electricity grid. This data is sent directly to your EcoFlow STREAM home battery.
Based on this real-time information, the system automatically determines when the battery should charge or discharge. This ensures that excess solar energy is used efficiently and reduces the amount of electricity you need to purchase from the grid.

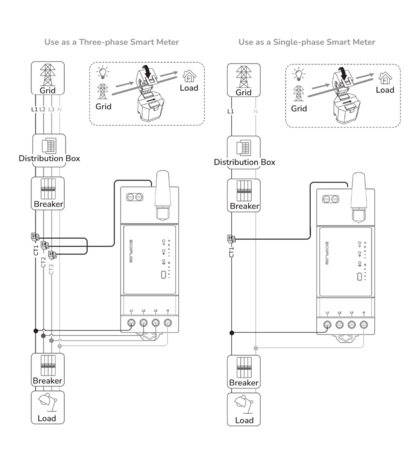

Suitable for Single-Phase and Three-Phase Installations
The EcoFlow Smart Meter is suitable for almost any home.
Single-Phase Installation
For a single-phase connection, only the first CT clamp is used.
Three-Phase Installation
For a three-phase connection, all three included CT clamps are used, allowing each phase to be measured separately for highly accurate energy monitoring.
Easy Connection to the EcoFlow App
After installation, you can easily connect the Smart Meter to the EcoFlow App via Wi-Fi or Bluetooth. You can then immediately view:
-
Current electricity consumption
-
Solar panel production
-
Electricity imported from the grid
-
Electricity fed back into the grid
-
EcoFlow home battery status
-
Historical energy data
This allows you to monitor and manage your energy consumption anytime and anywhere.
Professional Installation Recommended

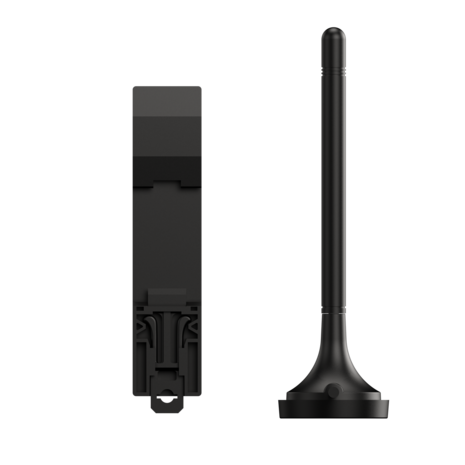

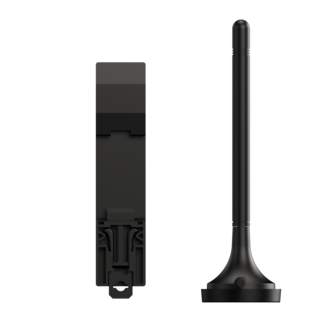

The EcoFlow Smart Meter is mounted on a DIN rail inside the electrical cabinet and connected using CT current clamps.
Please note: Installation should be carried out by a qualified installer or professional electrician. This product is not intended for DIY installation.
Technical Specifications
| Feature |
Specification |
| Product |
EcoFlow Smart Meter 120A CT |
| Application |
Energy management for EcoFlow STREAM |
| Installation |
DIN rail |
| Support |
Single-phase and three-phase |
| Measurement method |
3 × 120A CT clamps |
| Meter dimensions |
90 × 66 × 36 mm |
| CT clamp dimensions |
30 × 30 × 50 mm |
| Maximum wire size |
0.5–2.5 mm² |
| Operating temperature |
-25°C to +70°C |
| Power consumption |
48 mA |
| Wi-Fi |
2.4 GHz |
| Bluetooth |
Yes |
Package Contents
Frequently Asked Questions
Do I need this Smart Meter?
If you want your EcoFlow STREAM home battery to automatically charge and discharge as efficiently as possible without using a separate CT meter, the EcoFlow Smart Meter is an ideal solution.
Does this meter work with three-phase connections?
Yes. The Smart Meter supports both single-phase and three-phase installations and comes standard with three CT current clamps.
Can I install it myself?
No. Because the meter is installed inside the electrical cabinet, we recommend having the installation carried out exclusively by a qualified installer.
Is an internet connection required?
Yes. The Smart Meter uses Wi-Fi (2.4 GHz) to communicate with the EcoFlow App and your home battery.
